PalDat - Palynological Database

an online publication on recent pollen

Catharanthus roseus

Taxonomy: Angiospermae, Gentianales, Apocynaceae, Catharanthus

Published: 2016-05-23

Pollen Description

Shape, Size and Aperture

pollen unit: monad,  dispersal unit and peculiarities: monad,  size (pollen unit): large (51-100 µm),  pollen class: colporate,  polarity: isopolar,  shape: spheroidal,  outline in polar view: circular,  shape (dry pollen): prolate,  outline in polar view (dry pollen): no suitable term,  infoldings (dry pollen): interapertural area sunken,  aperture number: 3,  aperture type: colporus,  aperture condition: colporate, tricolporate,  aperture peculiarities: -

Ornamentation and Structure

LMornamentation LM: -,  nexine: -,  sexine: -,  SEMornamentation SEM: perforate,  TEMtectum: -,  infratectum: -,  foot layer: -,  endexine: -,  intine: -,  wall peculiarities: -

Miscellaneous

pollen coatings: -,  reserves in cytoplasm: -,  cell number: -,  Ubisch bodies: present

Author(s) of diagnosis: Halbritter, Heidemarie

Pictures

hydrated pollen

1. hydrated pollen

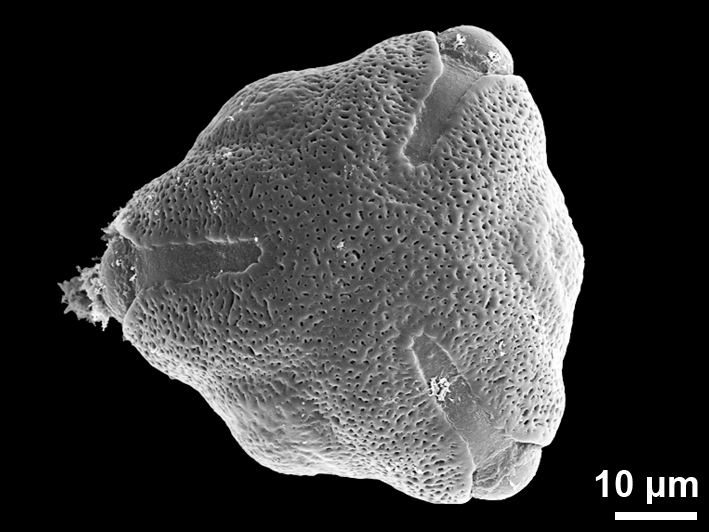

polar view

2. polar view

oblique polar view

3. oblique polar view

oblique equatorial view

4. oblique equatorial view

oblique view

5. oblique view

oblique view

6. oblique view

aperture

7. aperture

exine surface,interapertural area,equator

8. exine surface, interapertural area, equator

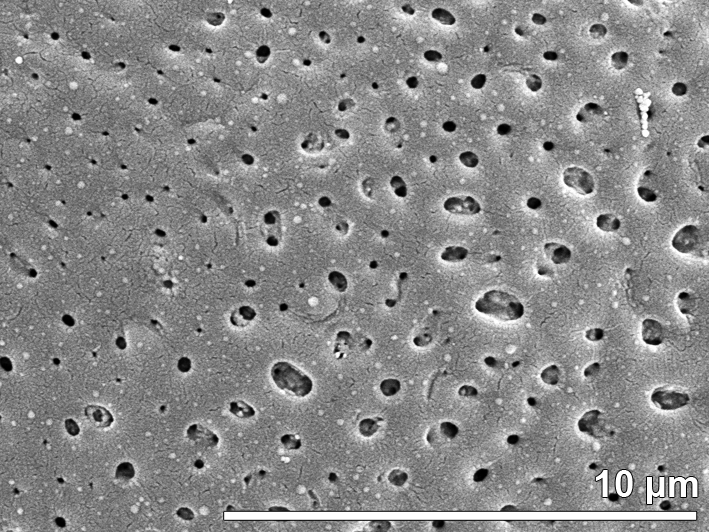

exine surface

9. exine surface

exine surface

10. exine surface

polar area

11. polar area

dry pollen

12. dry pollen

Ubisch bodies on locule wall

13. Ubisch bodies on locule wall

Picture legend

  1. hydrated pollen - dry, rehydrated (water) & critical point dried & sputter coated with gold, photographer: Halbritter, H.
  2. polar view - dry, rehydrated (water) & critical point dried & sputter coated with gold, photographer: Halbritter, H.
  3. oblique polar view - dry, rehydrated (water) & critical point dried & sputter coated with gold, photographer: Halbritter, H.
  4. oblique equatorial view - dry, rehydrated (water) & critical point dried & sputter coated with gold, photographer: Halbritter, H.
  5. oblique view - dry, rehydrated (water) & critical point dried & sputter coated with gold, photographer: Halbritter, H.
  6. oblique view - dry, rehydrated (water) & critical point dried & sputter coated with gold, photographer: Halbritter, H.
  7. aperture - dry, rehydrated (water) & critical point dried & sputter coated with gold, photographer: Halbritter, H.
  8. exine surface, interapertural area, equator - dry, rehydrated (water) & critical point dried & sputter coated with gold, photographer: Halbritter, H.
  9. exine surface - dry, rehydrated (water) & critical point dried & sputter coated with gold, photographer: Halbritter, H.
  10. exine surface - dry, rehydrated (water) & critical point dried & sputter coated with gold, photographer: Halbritter, H.
  11. polar area - dry, rehydrated (water) & critical point dried & sputter coated with gold, photographer: Halbritter, H.
  12. dry pollen - dry, sputter coated with gold, photographer: Halbritter, H.
  13. Ubisch bodies on locule wall - dry, rehydrated (water) & critical point dried & sputter coated with gold, photographer: Halbritter, H.

Literature

  • Halbritter, H (1998) Preparing living pollen material for scanning electron microscopy using 2,2-dimethoxypropane (DMP) and criticalpoint drying. Biotechnic Histochem 73: 137–143

Copyright and Citation

Cite this publication as:

Halbritter H. 2016. Catharanthus roseus. In: PalDat - A palynological database. https://www.paldat.org/pub/Catharanthus_roseus/301079;jsessionid=366E49B6F10EFDE7A521B874EA44C651; accessed 2018-11-15
