Jatropha podagrica

Taxonomy: Angiospermae, Malpighiales, Euphorbiaceae, Jatropha

Published: 2016-11-09

Pollen Description

Shape, Size and Aperture

pollen unit: monad,  dispersal unit and peculiarities: monad,  size (pollen unit): large (51-100 µm),  pollen class: inaperturate,  polarity: isopolar,  shape: spheroidal,  outline in polar view: circular,  shape (dry pollen): irregular,  outline in polar view (dry pollen): irregular,  infoldings (dry pollen): irregularly infolded,  aperture number: none,  aperture type: no aperture,  aperture condition: inaperturate,  aperture peculiarities: -

Ornamentation and Structure

LMornamentation LM: -,  nexine: -,  sexine: -,  SEMornamentation SEM: reticulate, gemmate, croton pattern,  TEMtectum: -,  infratectum: -,  foot layer: -,  endexine: -,  intine: -,  wall peculiarities: -

Miscellaneous

pollen coatings: -,  reserves in cytoplasm: -,  cell number: -,  Ubisch bodies: -

Author(s) of diagnosis: Halbritter, Heidemarie

Pictures

flower(s)

1. flower(s)

hydrated pollen grain

2. hydrated pollen grain

exine surface

3. exine surface

exine surface

4. exine surface

dry pollen grains

5. dry pollen grains

Picture legend

  1. flower(s), photographer: Halbritter, H.

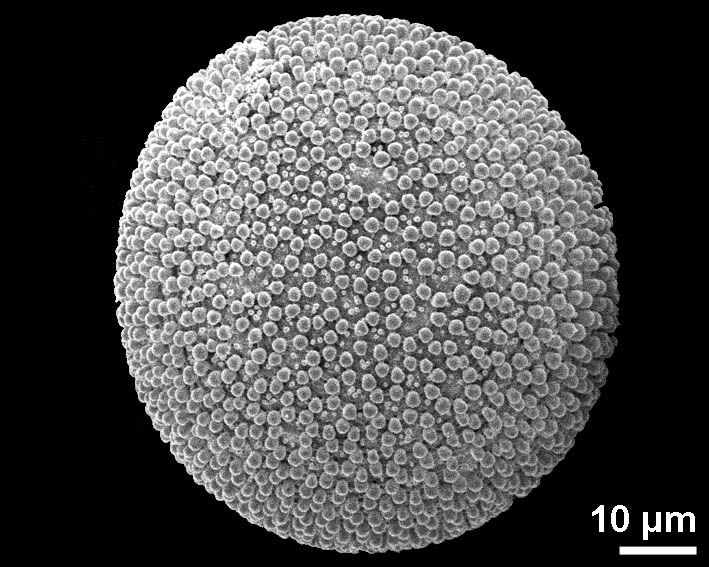

  2. hydrated pollen grain - fresh, rehydrated (water) & critical point dried & sputter coated with gold, photographer: Halbritter, H.

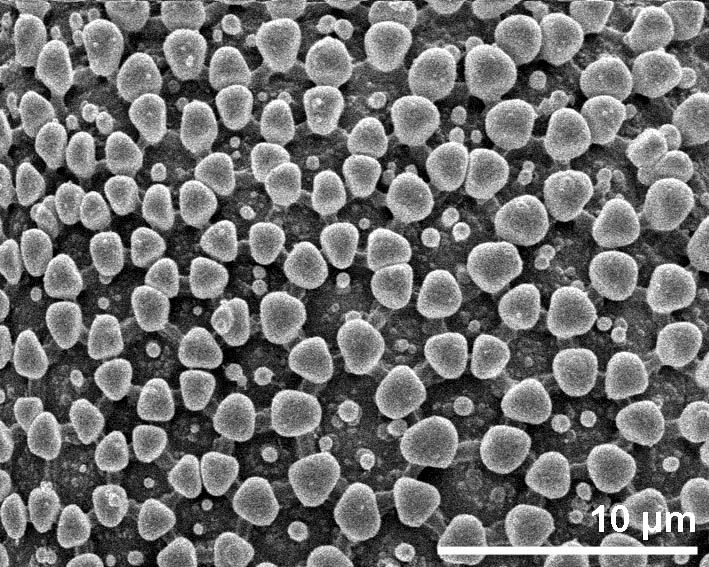

  3. exine surface - fresh, rehydrated (water) & critical point dried & sputter coated with gold, photographer: Halbritter, H.

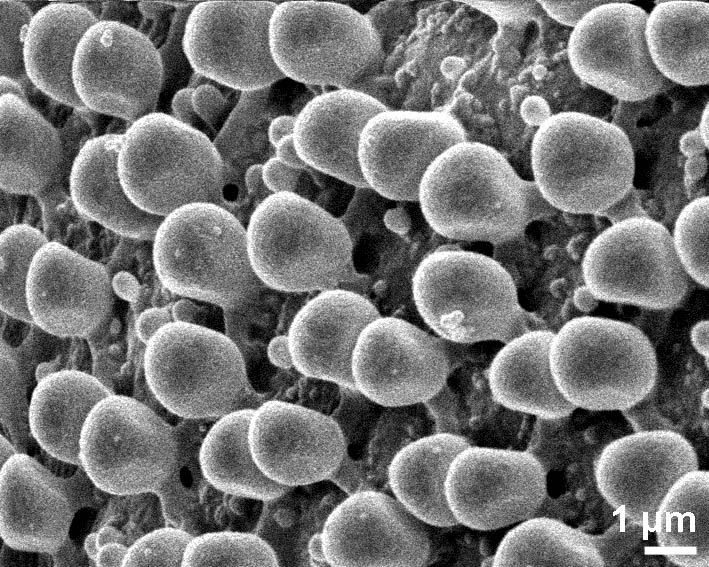

  4. exine surface - fresh, rehydrated (water) & critical point dried & sputter coated with gold, photographer: Halbritter, H.

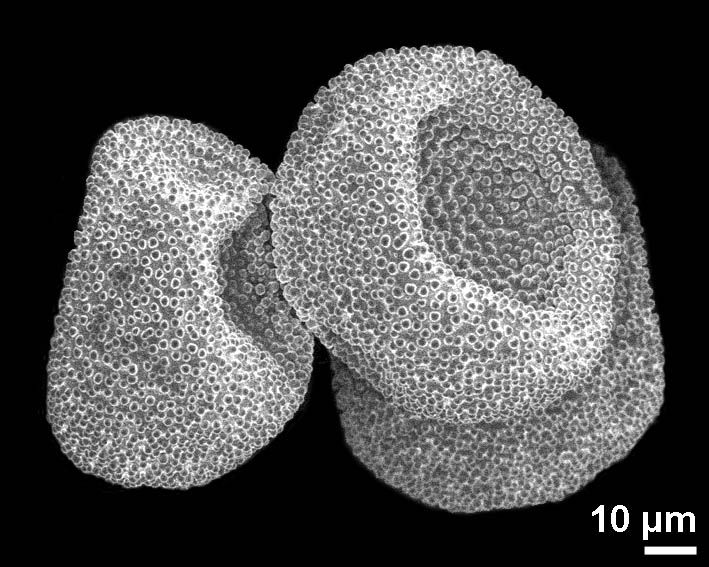

  5. dry pollen grains - dry, sputter coated with gold, photographer: Halbritter, H.

Literature

  • Halbritter, H (1998) Preparing living pollen material for scanning electron microscopy using 2,2-dimethoxypropane (DMP) and criticalpoint drying. Biotechnic Histochem 73: 137–143
