Melampyrum nemorosum

Taxonomy: Angiospermae, Lamiales, Orobanchaceae, Melampyrum

Published: 2016-10-10

Pollen Description

Shape, Size and Aperture

pollen unit: monad,  dispersal unit and peculiarities: monad,  size (pollen unit): small (10-25 µm),  pollen class: colpate,  polarity: isopolar,  shape: spheroidal,  outline in polar view: circular,  shape (dry pollen): prolate,  outline in polar view (dry pollen): triangular,  infoldings (dry pollen): interapertural area sunken,  aperture number: 3,  aperture type: colpus,  aperture condition: colpate, tricolpate,  aperture peculiarities: aperture membrane smooth

Ornamentation and Structure

LMornamentation LM: no suitable term,  nexine: present,  sexine: present,  SEMornamentation SEM: verrucate, striato-microreticulate,  TEMtectum: eutectate,  infratectum: columellate,  foot layer: discontinuous,  endexine: compact-continuous,  intine: bilayered,  wall peculiarities: -

Miscellaneous

pollen coatings: pollenkitt,  reserves in cytoplasm: lipids,  cell number: 2-celled,  Ubisch bodies: present

Annotations

pollen grains 2- and 3-celled; nuclei of anther-cells often contain calcium oxalate crystals

Author(s) of diagnosis: Halbritter, Heidemarie; Ulrich, Silvia

Pictures

habitus

1. habitus

flower(s)

2. flower(s)

flower(s)

3. flower(s)

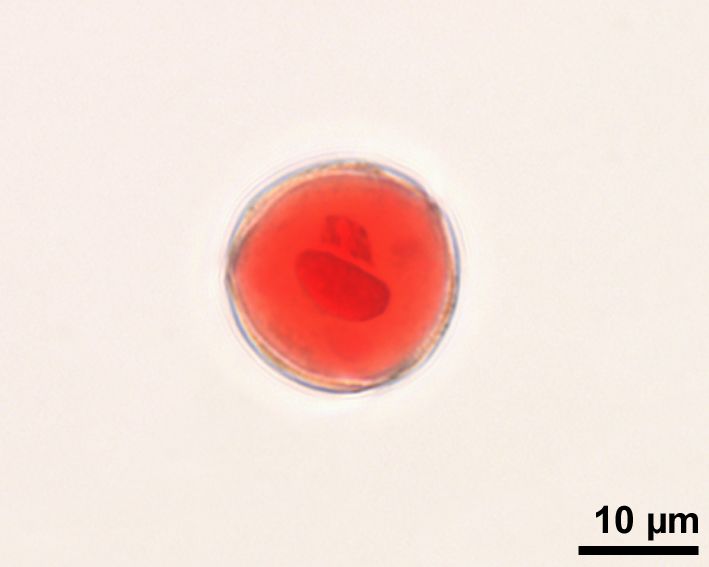

two-celled pollen grain

4. two-celled pollen grain

two-celled pollen grains

5. two-celled pollen grains

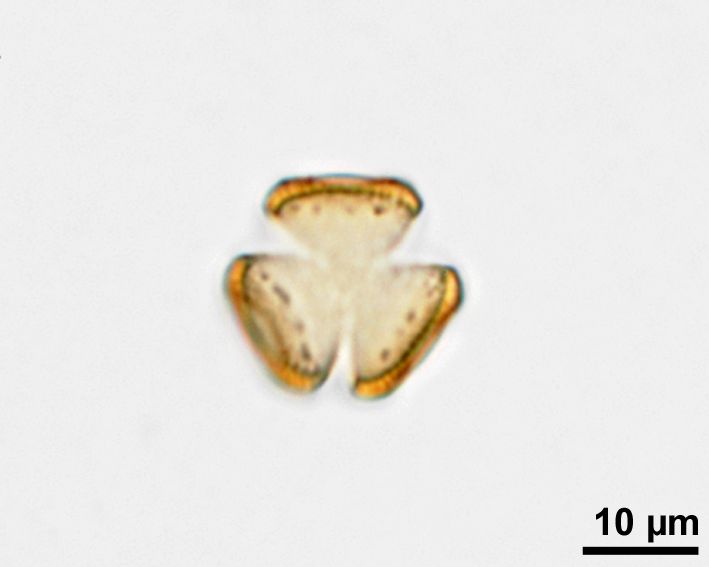

acetolysed pollen in polar view, upper focus

6. acetolysed pollen in polar view, upper focus

acetolysed pollen in polar view, optical section

7. acetolysed pollen in polar view, optical section

acetolysed pollen in polar view, lower focus

8. acetolysed pollen in polar view, lower focus

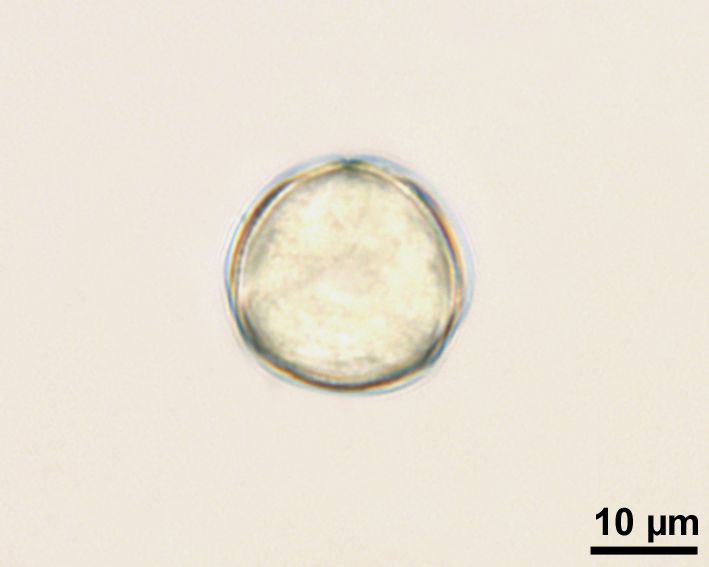

hydrated pollen, polar view

9. hydrated pollen, polar view

hydrated pollen, equatorial view

10. hydrated pollen, equatorial view

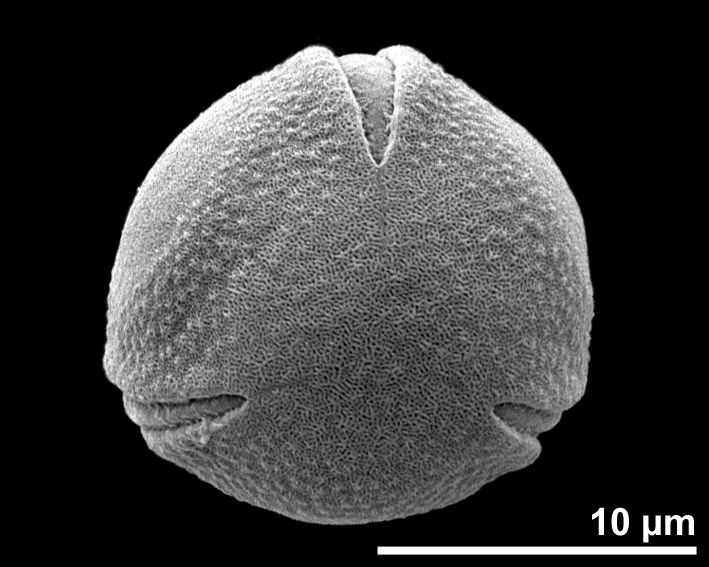

polar view

11. polar view

polar view

12. polar view

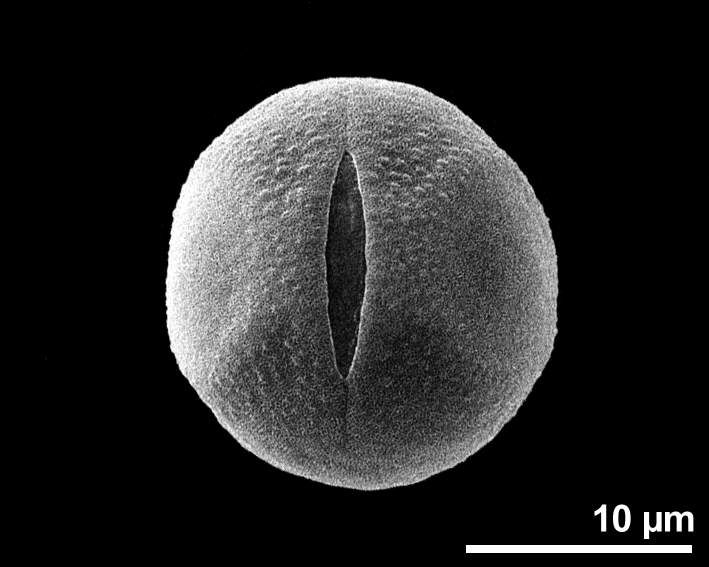

equatorial view

13. equatorial view

equatorial view

14. equatorial view

aperture

15. aperture

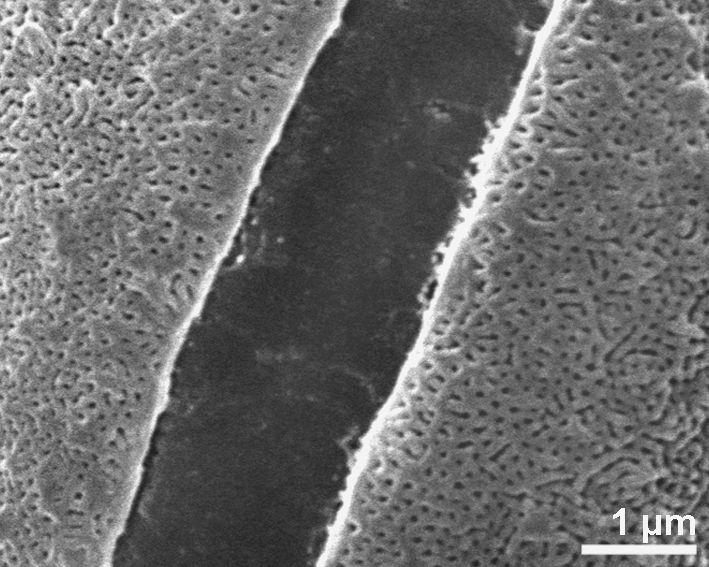

detail of aperture

16. detail of aperture

detail of aperture

17. detail of aperture

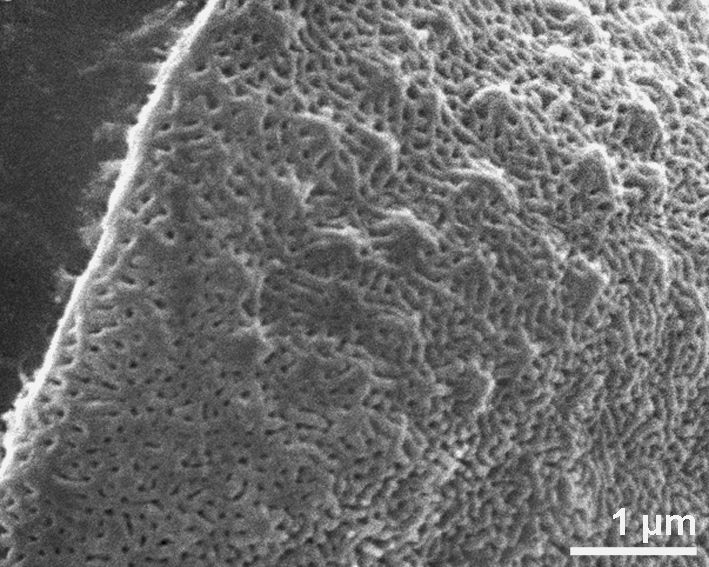

exine surface, transition zone between aperture and interapertural area

18. exine surface, transition zone between aperture and interapertural area

detail of exine surface, wall thickening in interapertural area

19. detail of exine surface, wall thickening in interapertural area

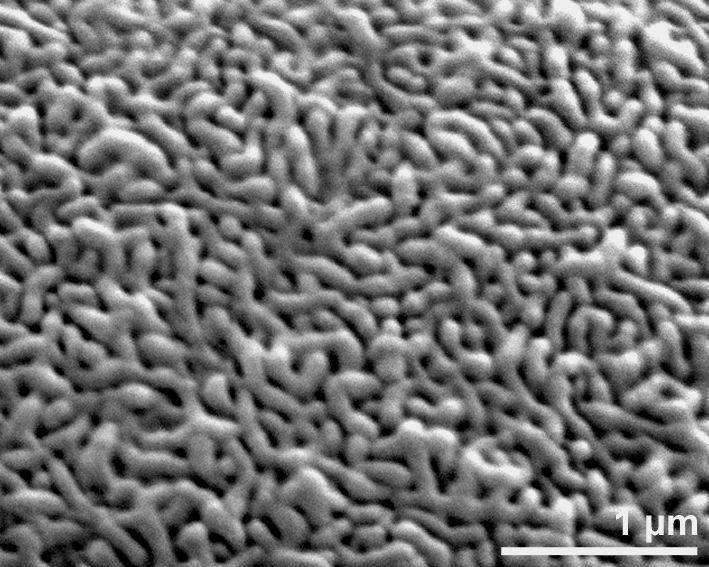

detail of exine surface

20. detail of exine surface

polar area

21. polar area

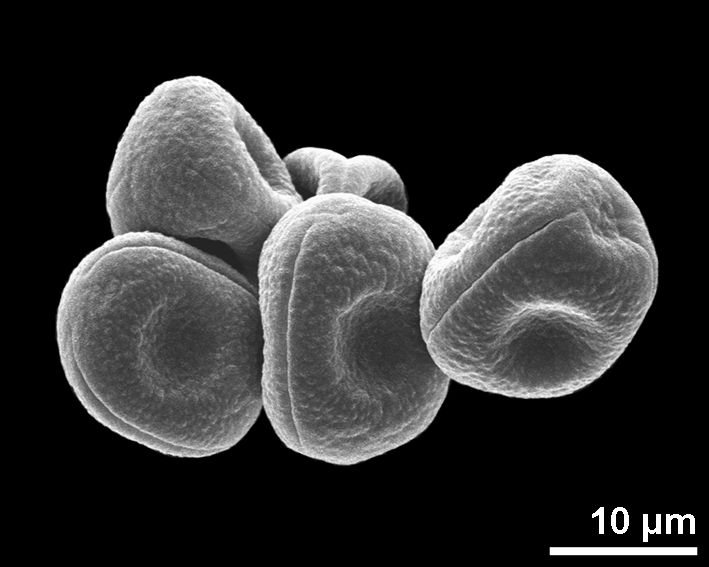

dry pollen grains

22. dry pollen grains

dry pollen grains

23. dry pollen grains

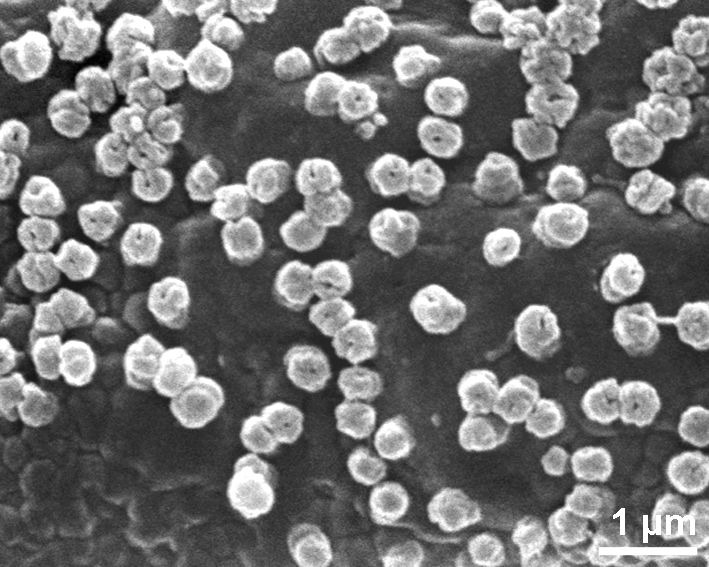

Ubisch bodies on inner anther wall

24. Ubisch bodies on inner anther wall

Ubisch bodies on inner anther wall

25. Ubisch bodies on inner anther wall

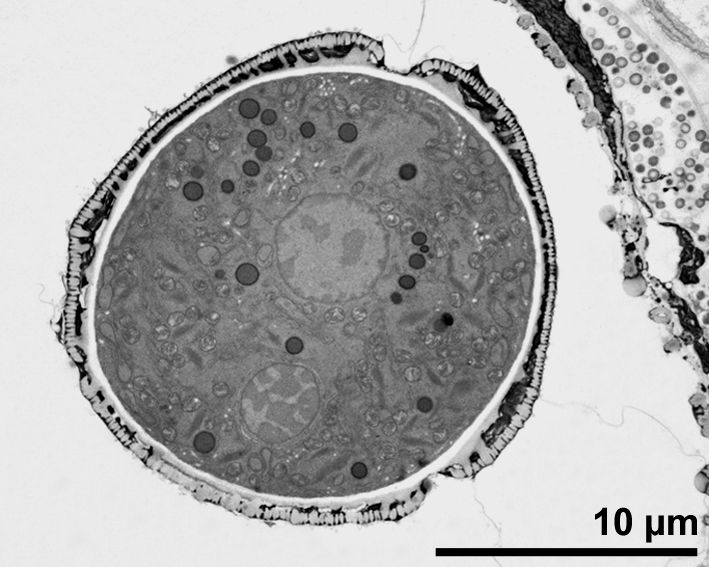

cross section of pollen grain

26. cross section of pollen grain

cross section of pollen grain, and Ubisch bodies on loculus wall

27. cross section of pollen grain, and Ubisch bodies on loculus wall

pollen wall with pollenkitt and Ubisch bodies on inner anther wall

28. pollen wall with pollenkitt and Ubisch bodies on inner anther wall

pollen wall, aperture in cross section

29. pollen wall, aperture in cross section

pollen wall, interapertural area, pollenkitt and Ubisch bodies on inner anther wall

30. pollen wall, interapertural area, pollenkitt and Ubisch bodies on inner anther wall

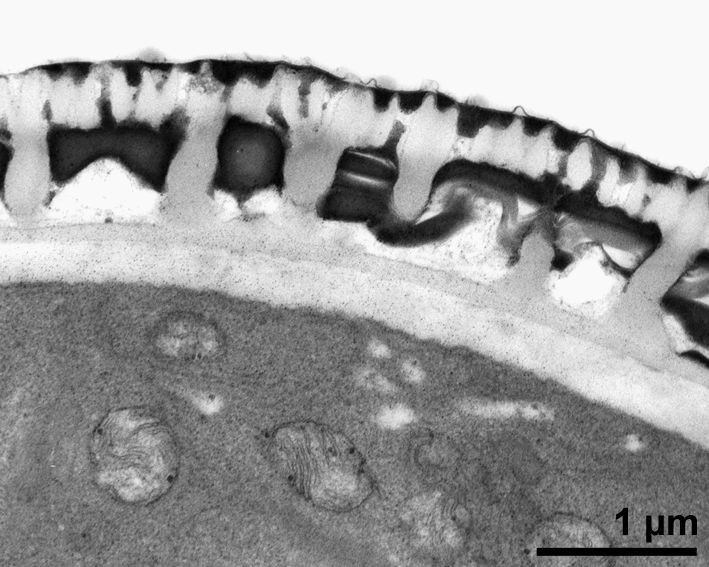

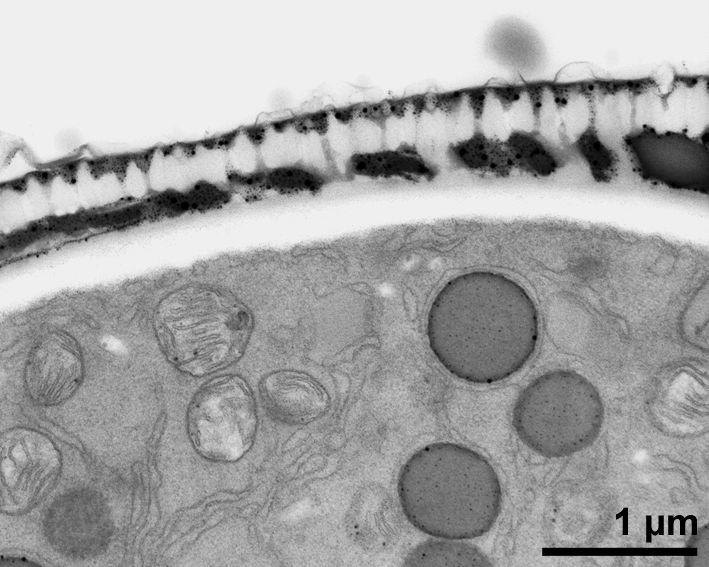

pollen wall, interapertural area

31. pollen wall, interapertural area

pollen wall, interapertural area

32. pollen wall, interapertural area

pollen wall, interapertural area

33. pollen wall, interapertural area

pollen wall, transition zone between aperture and interapertural area

34. pollen wall, transition zone between aperture and interapertural area

aperture in cross section

35. aperture in cross section

pollen wall, interapertural area, endexine clearly visible

36. pollen wall, interapertural area, endexine clearly visible

vegetative nucleus and generative cell

37. vegetative nucleus and generative cell

pollen wall, interapertural area; pollenkitt and Ubisch bodies

38. pollen wall, interapertural area; pollenkitt and Ubisch bodies

Ubisch bodies on loculus wall

39. Ubisch bodies on loculus wall

Picture legend

  1. habitus, photographer: Ulrich, S.
  2. flower(s), photographer: Ulrich, S.
  3. flower(s), photographer: Halbritter, H.
  4. two-celled pollen grain - dry, rehydrated (water), aceto-carmine, photographer: Ulrich, S.
  5. two-celled pollen grains - dry, rehydrated (water) & glycerine, aceto-carmine, photographer: Ulrich, S.
  6. acetolysed pollen in polar view, upper focus - dry, acetolyzed, unstained, photographer: Ulrich, S.
  7. acetolysed pollen in polar view, optical section - dry, acetolyzed, unstained, photographer: Ulrich, S.
  8. acetolysed pollen in polar view, lower focus - dry, acetolyzed, unstained, photographer: Ulrich, S.
  9. hydrated pollen, polar view - dry, rehydrated (water), unstained, photographer: Ulrich, S.
  10. hydrated pollen, equatorial view - dry, rehydrated (water), unstained, photographer: Ulrich, S.
  11. polar view - dry, rehydration (water) & critical point dried & sputter coated with gold, photographer: Ulrich, S.
  12. polar view - fresh, rehydrated (water) & critical point dried & sputter coated with gold, photographer: Halbritter, H.
  13. equatorial view - fresh, rehydration (water) & critical point dried & sputter coated with gold, photographer: Ulrich, S.
  14. equatorial view - fresh, rehydrated (water) & critical point dried & sputter coated with gold, photographer: Halbritter, H.
  15. aperture - fresh, rehydrated (water) & critical point dried & sputter coated with gold, photographer: Halbritter, H.
  16. detail of aperture - dry, rehydration (water) & critical point dried & sputter coated with gold, photographer: Ulrich, S.
  17. detail of aperture - dry, rehydration (water) & critical point dried & sputter coated with gold, photographer: Ulrich, S.
  18. exine surface, transition zone between aperture and interapertural area - dry, rehydration (water) & critical point dried & sputter coated with gold, photographer: Ulrich, S.
  19. detail of exine surface, wall thickening in interapertural area - dry, rehydration (water) & critical point dried & sputter coated with gold, photographer: Ulrich, S.
  20. detail of exine surface - dry, rehydration (water) & critical point dried & sputter coated with gold, photographer: Ulrich, S.
  21. polar area - dry, rehydration (water) & critical point dried & sputter coated with gold, photographer: Ulrich, S.
  22. dry pollen grains - dry, sputter coated with gold, photographer: Ulrich, S.
  23. dry pollen grains - dry, sputter coated with gold, photographer: Halbritter, H.
  24. Ubisch bodies on inner anther wall - dry, sputter coated with gold, photographer: Ulrich, S.
  25. Ubisch bodies on inner anther wall - dry, sputter coated with gold, photographer: Ulrich, S.
  26. cross section of pollen grain - fresh, glutaraldehyde & osmium & potassium ferrocyanide, modified Thiéry-test, photographer: Ulrich, S.
  27. cross section of pollen grain, and Ubisch bodies on loculus wall - fresh, glutaraldehyde & osmium & potassium ferrocyanide, modified Thiéry-test, photographer: Ulrich, S.
  28. pollen wall with pollenkitt and Ubisch bodies on inner anther wall - fresh, glutaraldehyde & osmium & potassium ferrocyanide, modified Thiéry-test, photographer: Ulrich, S.
  29. pollen wall, aperture in cross section - fresh, glutaraldehyde & osmium & potassium ferrocyanide, uranyl acetate & lead citrate, photographer: Ulrich, S.
  30. pollen wall, interapertural area, pollenkitt and Ubisch bodies on inner anther wall - fresh, glutaraldehyde & osmium & potassium ferrocyanide, modified Thiéry-test, photographer: Ulrich, S.
  31. pollen wall, interapertural area - fresh, glutaraldehyde & osmium & potassium ferrocyanide, lipid-test, photographer: Ulrich, S.
  32. pollen wall, interapertural area - fresh, glutaraldehyde & osmium & potassium ferrocyanide, lipid-test, photographer: Ulrich, S.
  33. pollen wall, interapertural area - fresh, glutaraldehyde & osmium & potassium ferrocyanide, uranyl acetate & lead citrate, photographer: Ulrich, S.
  34. pollen wall, transition zone between aperture and interapertural area - fresh, glutaraldehyde & osmium & potassium ferrocyanide, uranyl acetate & lead citrate, photographer: Ulrich, S.
  35. aperture in cross section - fresh, glutaraldehyde & osmium & potassium ferrocyanide, modified Thiéry-test, photographer: Ulrich, S.
  36. pollen wall, interapertural area, endexine clearly visible - fresh, glutaraldehyde & osmium & potassium ferrocyanide, potassium permanganate, photographer: Ulrich, S.
  37. vegetative nucleus and generative cell - fresh, glutaraldehyde & osmium & potassium ferrocyanide, modified Thiéry-test, photographer: Ulrich, S.
  38. pollen wall, interapertural area; pollenkitt and Ubisch bodies - fresh, glutaraldehyde & osmium & potassium ferrocyanide, modified Thiéry-test, photographer: Ulrich, S.
  39. Ubisch bodies on loculus wall - fresh, glutaraldehyde & osmium & potassium ferrocyanide, uranyl acetate & lead citrate, photographer: Ulrich, S.

Literature

  • Aghababian VS, Poghosova A (1991) Materials on palinomorphological study of Pedicularis L. and Melampyrium L. genera. Biol J Armenia 44: 7-13
  • Inceoglu O (1982) Pollen grains in some Turkish Rhinantheae (Scrophulariaceae). Grana 21: 83-96
  • Inceoglu O, Karamustafa F (1977) The pollen morphology of plants in Ankara region IV. Scrophulariaceae. Commun Fac Sci Univ Ankara Ser C2 Bot 21: 131-143
  • Kuprianova LA, Alyoshina LA (1978) Pollen dicotyledonearum Florae Partis Europaeae USSR. Lamiaceae - Zygophyllaceae. Nauka, Akad Sci USSR, VL Komarov Inst Bot : 184 pp
  • Marcesse C (1971) Pollens et pollinisation de quelques Scrophularicacées Méditerranéennes. DEA, USTL, Montpellier : 59 pp
  • Minkin JP, Eshbaugh WH (1989) Pollen morphology of the Orobanchaceae and rhinanthoid Scrophulariaceae. Grana 28: 1-18
  • Risch C (1939) Die Pollenkörner der in Deutschland wild wachsenden Scrophulariaceen. Ber Deutsch Bot Ges 57: 108-121
  • Adler W, Oswald K, Fischer R. (1994) Exkursionsflora von Österreich : 1180
  • Halbritter, H (1998) Preparing living pollen material for scanning electron microscopy using 2,2-dimethoxypropane (DMP) and criticalpoint drying. Biotechnic Histochem 73: 137–143

Copyright and Citation

Cite this publication as:

Halbritter H., Ulrich S. 2016. Melampyrum nemorosum. In: PalDat - A palynological database. https://www.paldat.org/pub/Melampyrum_nemorosum/301530;jsessionid=1180A630C07F878906C7F9416E320BC5; accessed 2018-11-14
